0x00 简介

在 PVE 直通时, 即使在 grub 中设置了 pcie_acs_override=downstream 或者 pcie_acs_override=downstream,multifunction

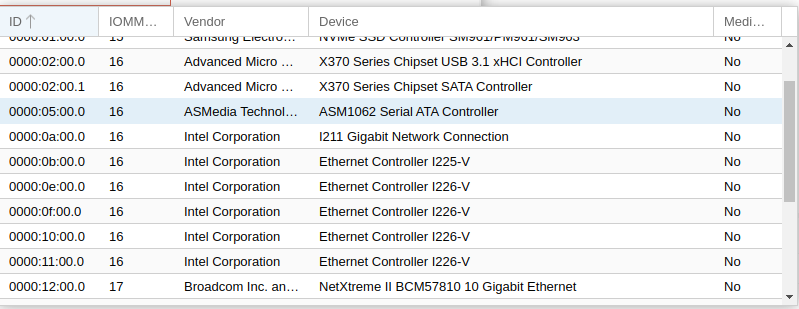

还是会出现多个设备在同一个 iommu 组中, 这时候直通了设备, 会导致同组的设备失联, 这时候只能去编译内核

0x01 内核编译

我这里的版本上 PVE 8.0.3

# 如果你现在是 root 用户, 请先创建一个 user
useradd -m -g users -s /bin/bash pve

# 如果没有 sudo 请安装
apt install sudo -y

# 设置的你的用户密码
passwd pve

# 进入用户组
su pve

# 进入用户文件夹
cd

# 安装依赖
sudo apt install devscripts asciidoc-base automake bc bison cpio dh-python bison flex git kmod libdw-dev libelf-dev libiberty-dev libnuma-dev libpve-common-perl libslang2-dev lintian lz4 perl-modules rsync sphinx-common xmlto zlib1g-dev dwarves net-tools htop vnstat libpve-common-perl python3-dev -y

# 下载源码, 记得挂梯子
git clone --recursive https://git.proxmox.com/git/pve-kernel.git

# 修改补丁
vim patches/kernel/0004-pci-Enable-overrides-for-missing-ACS-capabilities-4..patch

## 修改 159 行的代码, 由于删除了一行, 你需要加多一行, 另外注意括号
## 原代码
+	if (!pci_is_pcie(dev) ||
+		pci_find_ext_capability(dev, PCI_EXT_CAP_ID_ACS))
+			return -ENOTTY;

## 修改后
+       if (!pci_is_pcie(dev))
+               return -ENOTTY;
+

# 直接编译, 有自动检测线程, 编译时间基于机器性能
make

# 安装内核
dpkg -i *.deb

0x02 Grub 修改

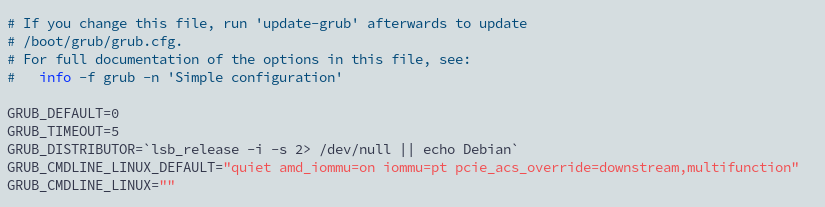

# 你的 gurb 配置应该长这样, intel 的记得自己修改
GRUB_CMDLINE_LINUX_DEFAULT="quiet amd_iommu=on iommu=pt pcie_acs_override=downstream,multifunction"
# 更新 grub
update-grub

# 更新 initramfs
update-initramfs -u -k all

# 重启
reboot

# 查看内核版本
uname -a

## 输出
Linux PVE 6.5.3-1-pve #1 SMP PREEMPT_DYNAMIC PMX 6.5.3-1 (2023-10-23T08:03Z) x86_64 GNU/Linux

## 刷新一下 web

0x03 懒狗版

# (optional) install wget
apt install wget -y

# (optional) create a folder
mkdir pve-kernel

# (optional) cd to the floder
cd pve-kernel

# download the file
wget https://dl.qiedd.com/Linux/pve-kernel/6.5.3-1.tar.gz

# extract the file
tar xvf 6.5.3-1.tar.gz

# install the modified kernel
dpkg -i *.deb

# reboot the system
reboot

# check the kernel
uanme -a

## output
Linux PVE 6.5.3-1-pve #1 SMP PREEMPT_DYNAMIC PMX 6.5.3-1 (2023-10-23T08:03Z) x86_64 GNU/Linux
